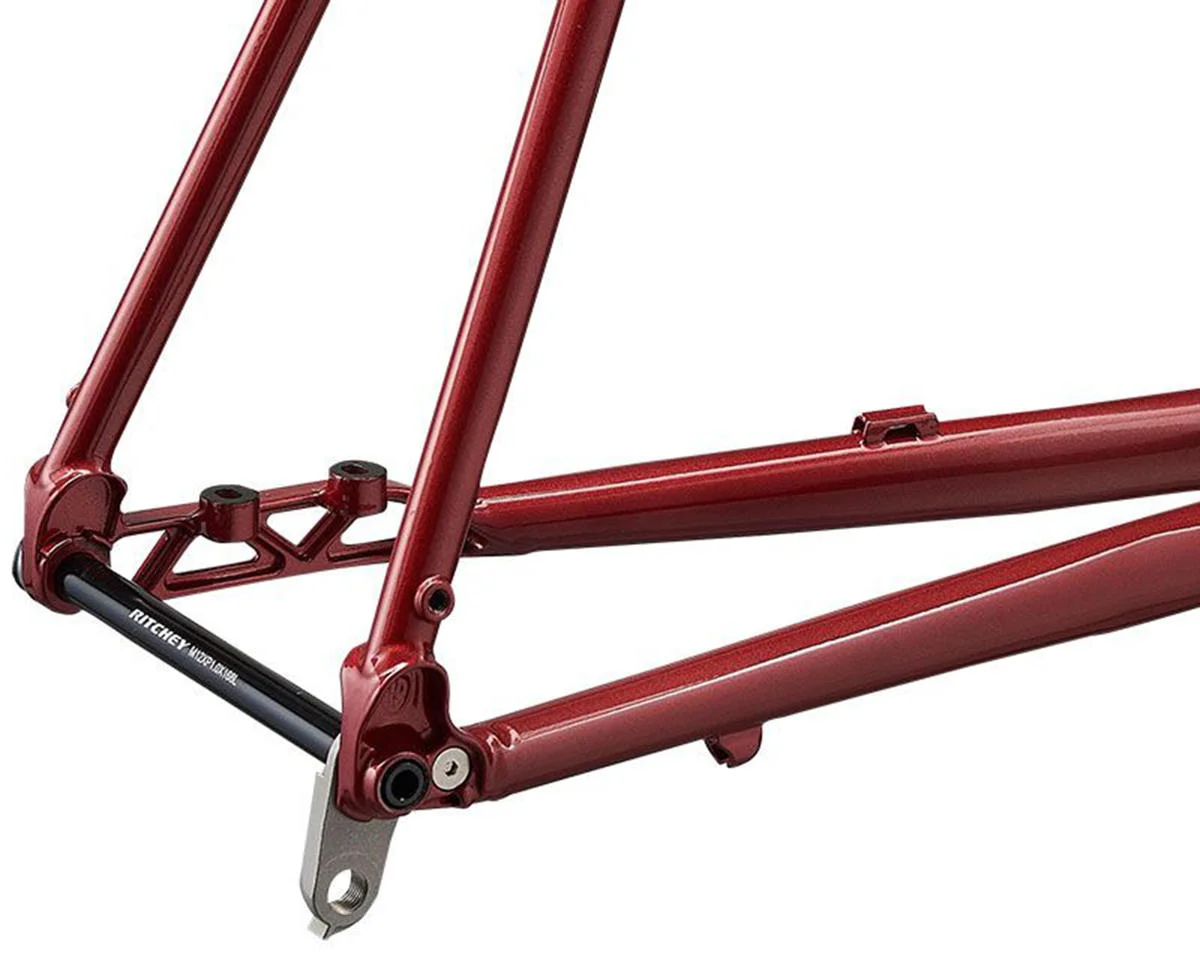

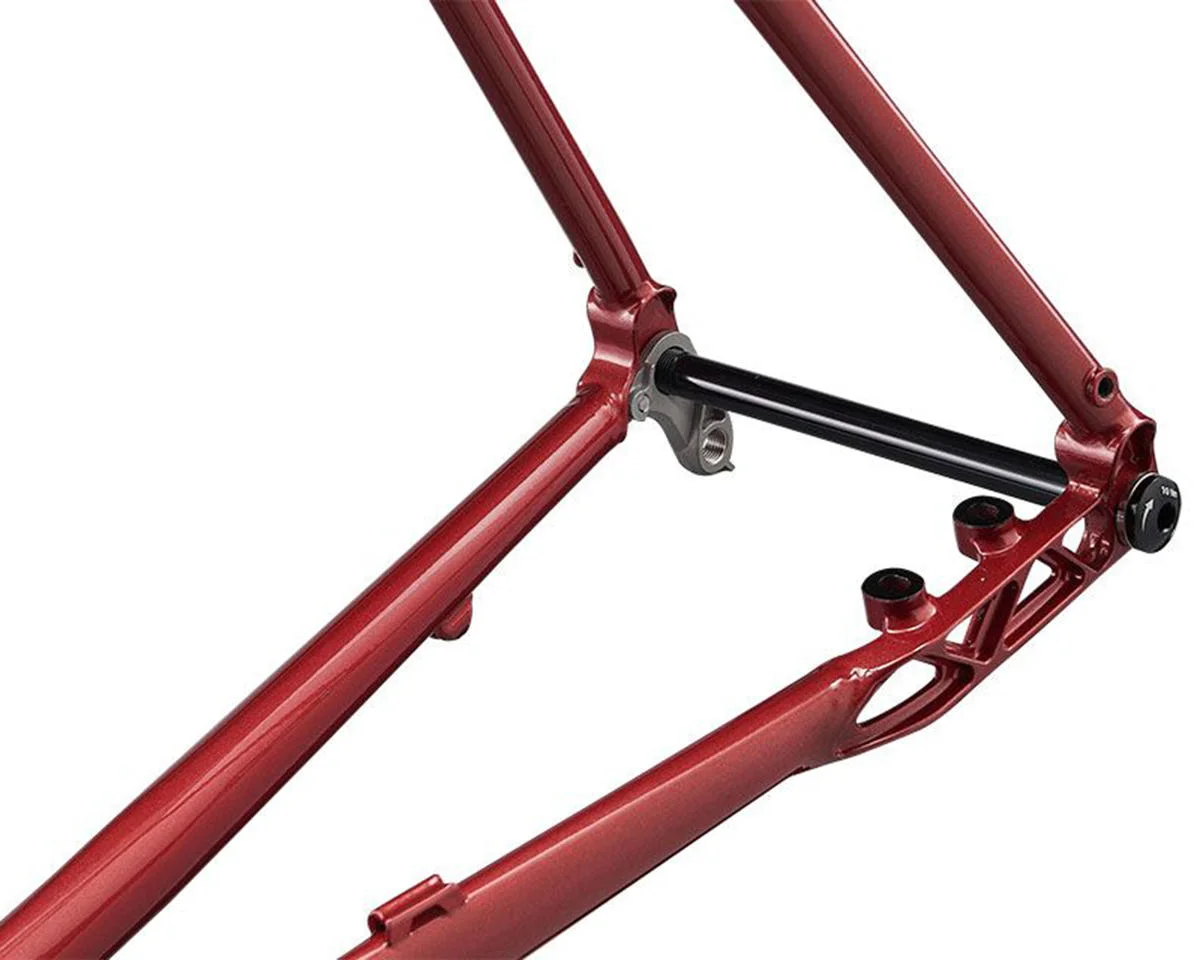

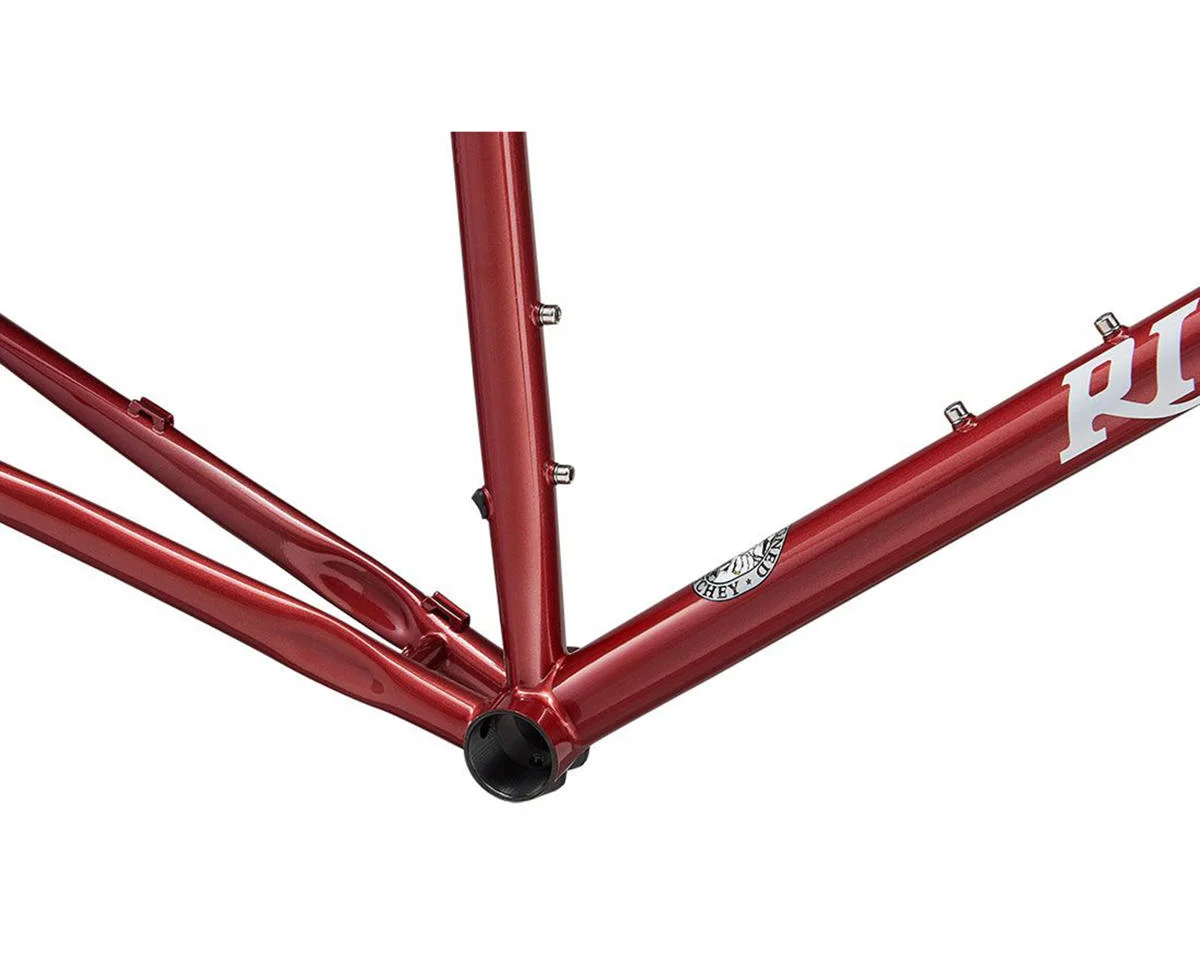

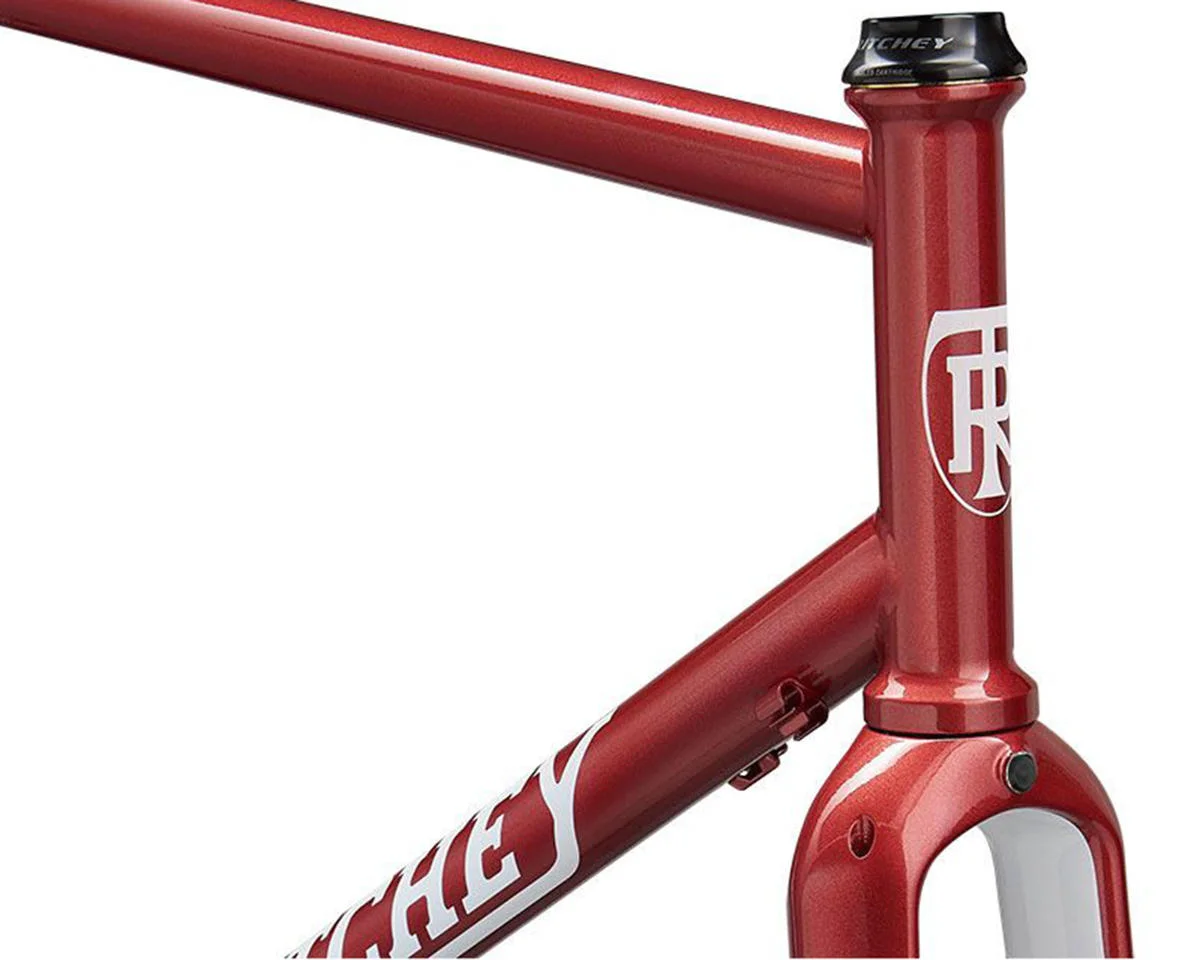

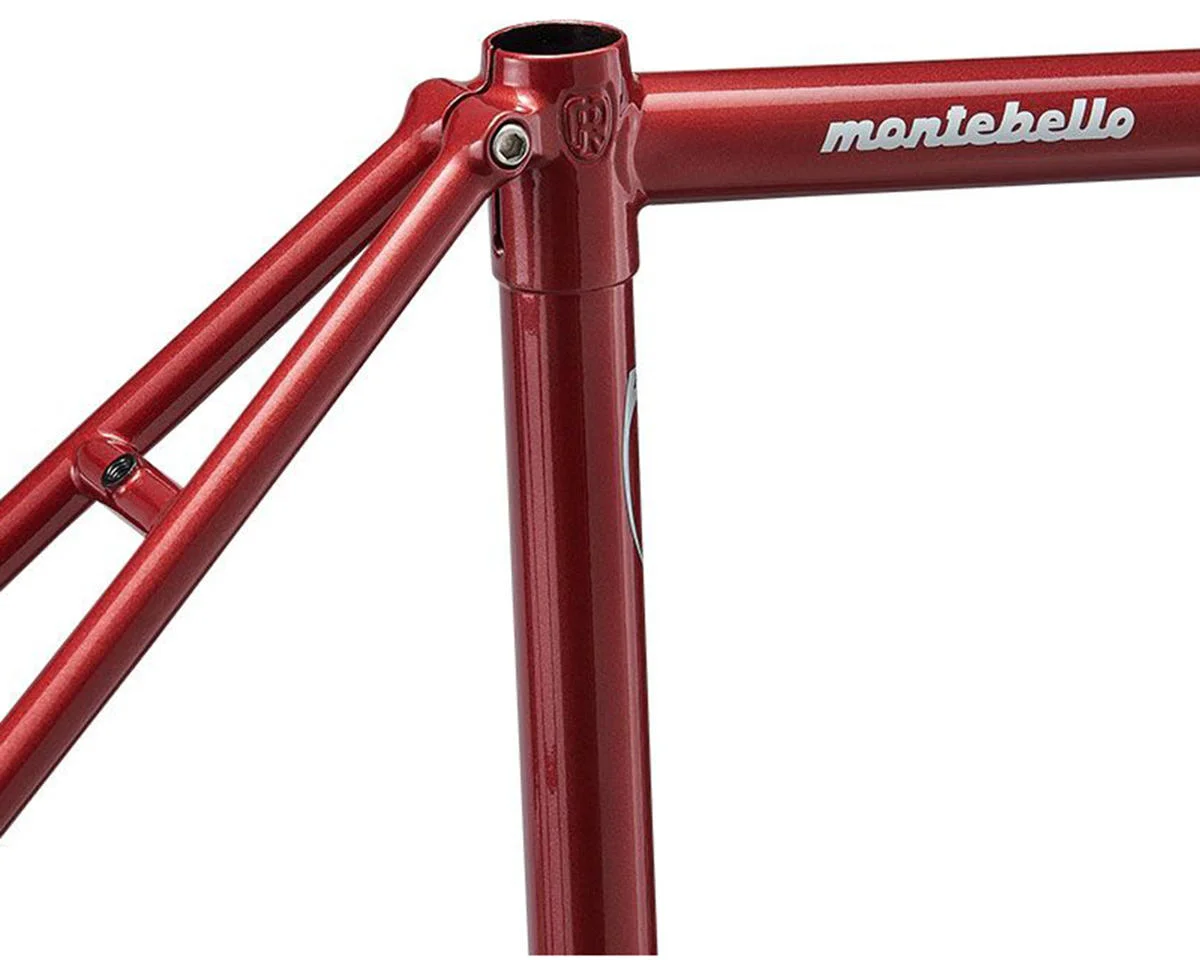

Ritchey Montebello Disc Frameset (Hot Sauce) (L)

Ritchey Montebello Disc Frameset Description:

The Ritchey Montebello Disc Frameset is built for the rider whom desires to ride beyond a traditional long-distance ride. Thoughtful touches like a taller front end to ease the strain on lower backs and necks, longer wheel base, and a lower bottom bracket height than typically found on a road bike for stability all help those miles melt away. The Ritchey Logic Triple Butted Steel Frame features external cable routing for easy on-trail maintenance and adjustments, frame rack mounts, fender mounts, and clearance for up to 700 x 40mm tires (700 x 36mm when set up with fenders). Rounding out the package is a specially designed Brevet WCS Carbon fork that has mounts for fenders, lowrider rack mounts, and internal cable routing for a hub dynamo powered headlight. For all of the adventure seekers and curious wonderers, this frameset is designed to take you to the great unknown and beyond.

Notes:The hole in the fork crown shown in the images will be closed and is not intended to attach a light or any other accessories. Multiple accessory mounts along the fork legs as well as dropout rack mounts can be used to attach racks or other accessories (max weight capacity is 2.5kg, or 5.5lbs, per leg).

Features:

• Ritchey WCS Logic triple-butted tubing developed specifically for TIG welding
• Frame tubes are electrophoretic deposition (ED coated) for rust prevention
• Stealth wire routing for semi-wireless Di2 groupsets as well as stops and guides for External cable and brake housing routing
• Replaceable stainless steel derailleur hanger
• 49mm chainline
• Fork has porteur or low-rider rack mounts and bosses for fenders, and internal cable routing for a front hub dynamo powered headlight
• Integrated carbon crown race to reduce stress at the steerer crown interface

Specifications:

• Frame Material: Ritchey Heat-Treated, Triple-Butted Ritchey Logic Steel Tubing (TIG Welded)
• Fork Material: Ritchey Brevet WCS Carbon Disc Fork (Low-Rider Rack and Fender Mounts) (300mm Steerer Tube Length)
• Headset: WCS Integrated Headset Included
• Headset Size: IS42 /28.6 – 16mm Stack Height (Upper) | IS42/30 (Lower)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical)
• Brake Mounts: Flat Mount
• Rotor Compatibility: 140mm (160mm Max w/Adapters – Available Separately)
• Axle Type: Fork and Frame Thru Axles Included
• Hub Spacing: 12 x 100mm (Front), 12 x 142mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″
• Seatpost: Not Included
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Integrated In Frame (6 Nm Max Torque)
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 68mm
• Drivetrain Compatibility: Can Accommodate 1x or 2x Chainrings
• Chainring Compatibility: 36T – 50T (1x) | 46/30T – 53/39T (2x)
• Tire Clearance: 700 x 36mm w/ Fenders | 700 x 40mm w/out Fenders (depending on tire/rim manufacturer)
• Cable Routing: Stealth Wire Routing for Semi-Wireless Di2 Groupsets | External Cable And Housing Stops
• Dropper Post Routing: No
• Water Bottle Bosses: 2 Mounting Positions (Seattube, Downtube Top)
• Fender/Rack Mounts: Yes (Fork Max Weight Capacity: 2.5 kg, or 5.5lbs, Per Leg/Side)
• Front Derailleur Mount: 28.6mm Clamp
• Rear Derailleur Hanger: Replaceable Stainless Steel Derailleur Hanger Included
• Model Year: 2025
• Color: Hot Sauce
• Weight: Frame – 2000g (Size: M) (w/Out Thru Axle); Fork – 415g (un-cut steerer tube) (w/Out Thru Axle)
